Description

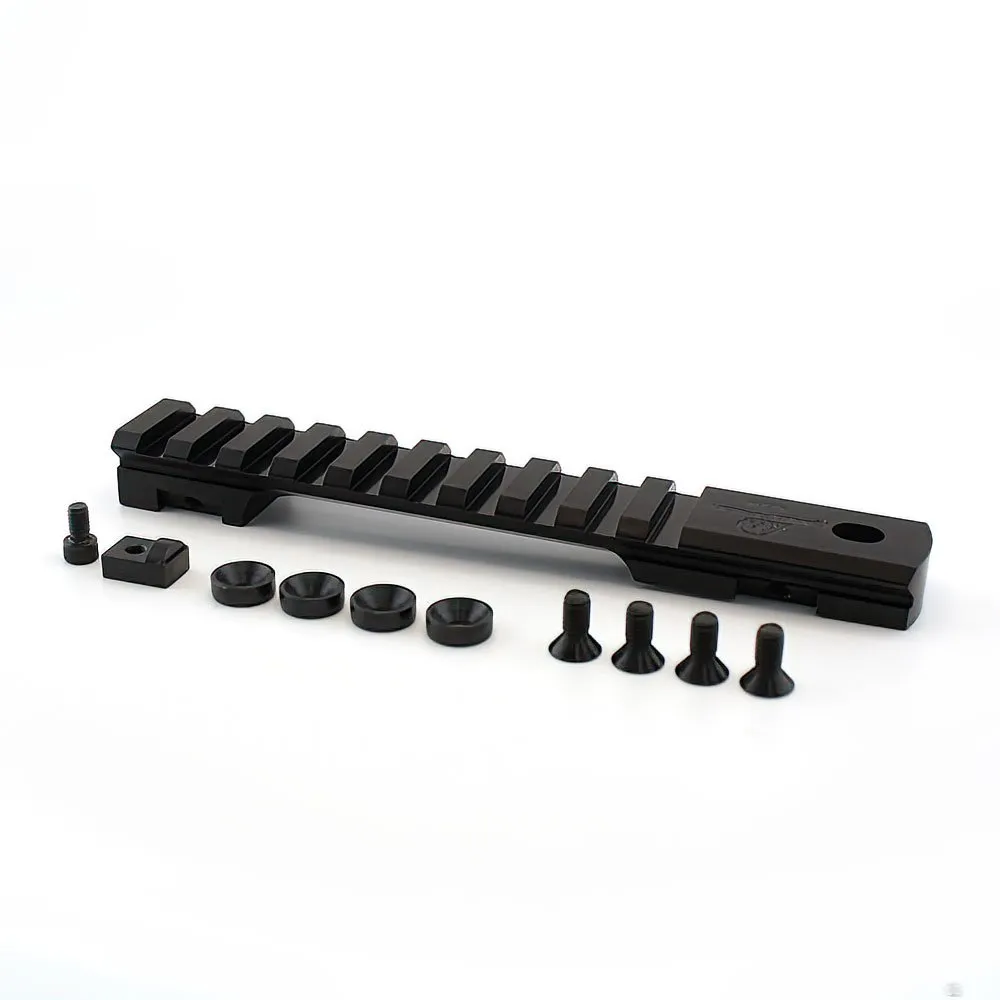

This Photo is The Ruger M77 Mount Short Action. The X in the part number signifies the adjustable recoil lug.
NOTE: As of 1/16/2024 All M77 scope mounts shipped from our web site now fit
left and right hand models.
Adjustable Recoil Lug on All M77X and M77LX Model Scope Mounts
Ruger M77, M77 MKII and Hawkeye Rifle Scope Mount WEIG-A-TINNY®
Fits Weaver and Picatinny style attachments
NOTE: Not for use on the following calibers
- 338 Winchester Magnum
- 375 H&H Magnum Caliber
- 375 Ruger
- 416 Ruger
Bullet weight times velocity should not exceed 700,000
M77 and M77 MKII and Hawkeye WEIG-A-TINNY® Style Scope Mount-Our Newest Scope Mount in the Ruger Rifle line. This mount converts the Ruger scope ring attaching points to a WEIG-A-TINNY® Picatinny Weaver style mounting point.
To determine if your rifle is the short action you need to measure from the center of the rear scope ring slot on the top of the receiver to the center of the front scope ring slot. The short action is 4” long, approximately 1/4″ larger readings are the long action.
Accepts all Weaver and Picatinny style rings and accessories.
Body made from 6061-T6 Aluminum the recoil lug is mild steel.
Available in black or silver, matte anodized finish, weighs 3.1 ounces.
| MANUFACTURER | WEIGAND |
