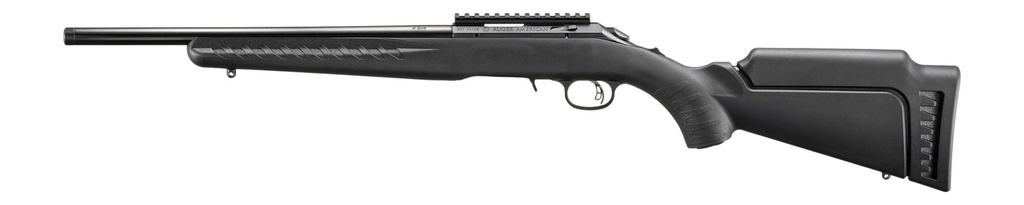

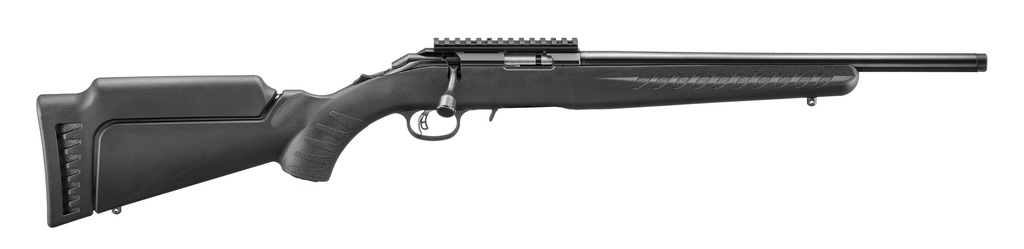

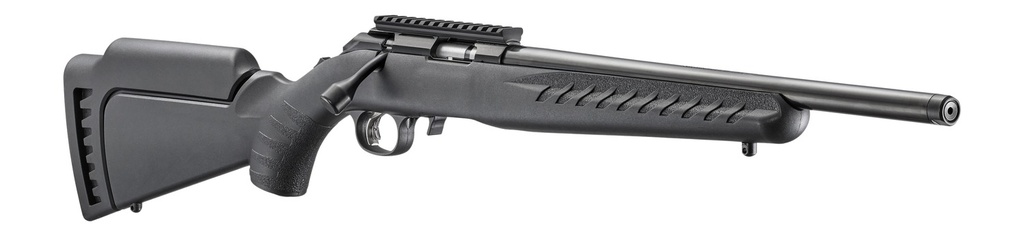

RUGER AMERICAN 17 HMR 9+1 16.10" SATIN BLUED THREADED BARREL SATIN BLUED

The Ruger American Rimfire (8393) is a bolt-action rifle chambered in .17 HMR with a 16.10-inch cold hammer-forged threaded barrel and a satin blued finish, built for hunters and precision rimfire shooters who want a lightweight, accurate bolt-action 17 HMR rifle for small game, varmint work, and extended range sessions. It delivers Ruger's core accuracy features in a compact, maneuverable package that handles quickly in the field and mounts a suppressor or muzzle device without modification.

Key Features

• Part number: 8393
• Caliber: .17 HMR
• Capacity: 9+1 rounds, JMX-1 flush-mounted rotary magazine
• Barrel length: 16.10 inches
• Barrel type: Cold hammer-forged alloy steel, free-floated
• Barrel finish: Satin blued
• Thread pattern: 1/2-28, thread protector included
• Twist rate: 1:9 inches, right-hand, 6 grooves
• Stock: Black synthetic with interchangeable comb-height modules
• Length of pull: 13.75 inches
• Overall length: 35 inches
• Weight: 5.3 lbs
• Action: Bolt-action, 60-degree bolt throw
• Safety: Tang-mounted, visible and easy to actuate
• Sights: None
• Scope base: Factory-installed one-piece Picatinny rail

Special Features

• The Power Bedding integral bedding block system positively locks the receiver into the stock and free-floats the barrel, a combination that removes stock-induced pressure points and produces consistent shot-to-shot accuracy from a factory rifle.
• The Ruger Marksman Adjustable trigger is user-adjustable between 3 and 5 lbs of pull weight with no gunsmithing required, letting the shooter dial in a break that matches their shooting style.
• The 60-degree bolt throw provides a short, fast cycling stroke that keeps your hand close to the grip and clears most standard scope objectives without risking contact.
• Two interchangeable stock comb modules are included, one standard height and one high comb, so the rifle fits correctly whether you run a low-mount rimfire optic or a taller scope setup.
• The receiver-mounted bolt release allows the bolt to be removed without pulling the trigger, a design feature that adds a layer of safety during field unloading and cleaning.
• The flush-mounted JMX-1 rotary magazine keeps the profile clean and snag-free, and the rifle also accepts the higher-capacity BX-15 Magnum magazine for extended range use.

Practical Benefits

• The 16.10-inch barrel keeps the overall length at 35 inches, making this rifle easy to carry through brush, load into a vehicle, or set up on shooting sticks in tight quarters.
• The 5.3 lb weight reduces fatigue on long hunts and makes this a natural fit for younger shooters or anyone who spends extended time behind the rifle.
• The threaded muzzle is compatible with a wide range of 1/2-28 suppressors and muzzle devices, making the Ruger American Rimfire (8393) a ready-to-suppress platform right out of the box.
• The adjustable comb and 13.75-inch length of pull fit a broad range of adult shooters, and the compact overall length works well for younger hunters moving into their first centerfire-caliber alternative.
• The .17 HMR cartridge shoots flat past 150 yards with minimal wind drift compared to .22 LR, giving you a meaningful reach advantage for varmints and small game at field distances.
• Whether you are hunting prairie dogs, shooting steel at 200 yards, or introducing a new shooter to precision bolt-action rifles, your Ruger American Rimfire (8393) gives you a factory-accurate platform built to perform beyond its price class.

The Ruger American Rimfire (8393) in .17 HMR is a capable tool for the varmint hunter or precision rimfire shooter who wants a suppressor-ready, accurate bolt gun in a compact, field-ready package.
