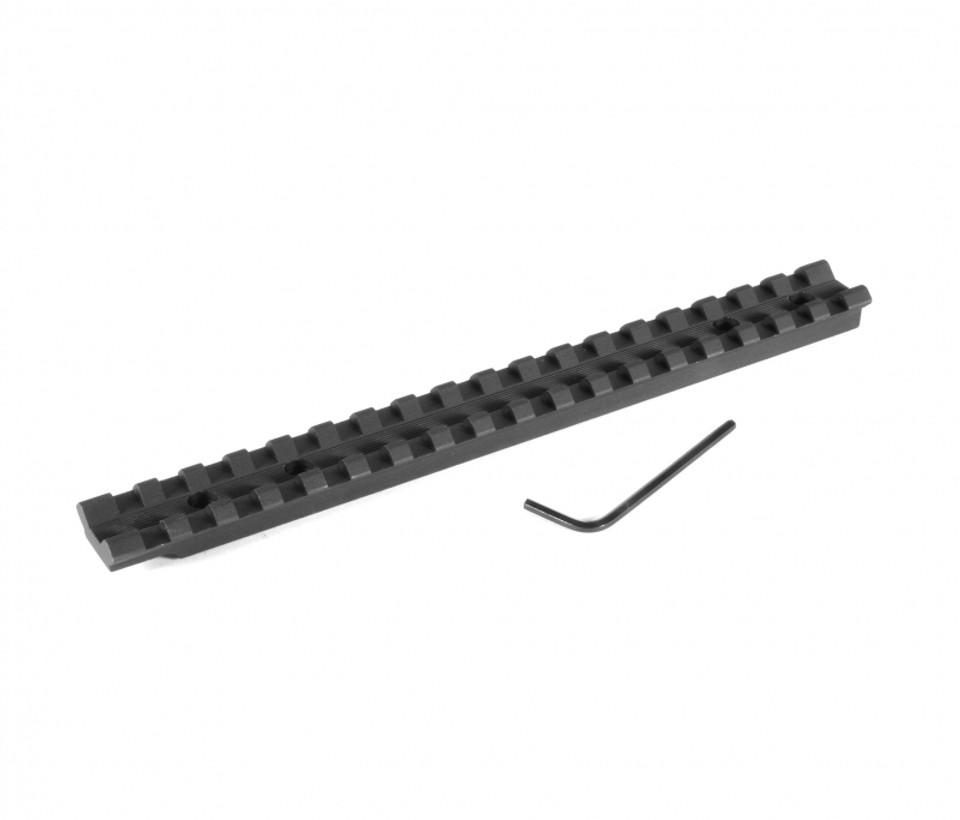

Picatinny Rail Scope Mount for Savage Edge, Axis, Axis XP, Axis II, Axis II XP 0 M.O.A.
Having trouble getting proper eye relief on your bolt action Savage Axis? Our one piece Savage Axis 0 MOA picatinny scope mount is the best option. Utilizing a multi-slot design, our scope base allows your scope rings to be mounted virtually anywhere along the base for a quick and easy mounting process. Our scope base for the Savage Axis is machined from aluminum and is a solid and dependable platform for your rifle. This scope mount is proudly made in the USA and comes with all of the necessary mounting hardware. Our mounts come with both #6 and #8 screws to fit ALL Savage Axis models.
This picatinny mount fits:
- Savage Edge - All Calibers (Drilled for #6-48 Screws)
- Savage AXIS - All Calibers (Drilled for #6-48 Screws)
- Savage AXIS II - All Calibers (Drilled for #6-48 Screws)
- Savage AXIS XP - All Calibers (Drilled for #6-48 Screws)
- Savage AXIS II - All Calibers (Drilled for #8-40 Screws)
- Savage AXIS II XP - All Calibers (Drilled for #8-40 Screws)
- Any other Savage Axis we forgot to mention - All Calibers
Machined from: Domestic 6061 T6 Extruded Aluminum
Finish: Matte Black Anodizing
Center Spread: 4.321"
Overall Length: 7.458"
Height: .4" (Top of Receiver to Top of Picatinny)
Weight: 2 oz.
Quick Disconnect Ring Compatible: No
Ambidextrous: Yes
Torque Specs: 20 in/lbs
Mounting Hardware: #6-48 X 1/4 Screws (Blue Bag), #8-40 x 1/4 Screws (Red Bag) T-10 Bit Included
We always recommend making sure the threaded holes are completely clear of any debris before installing the rail. Place the rail on the receiver with the overhang facing forward, place a small dab of blue thread locker on the provided mounting screws and torque them to 20 in/lbs.
One of the most common problems with Savage Axis scope mounts is they don't come with the correct mounting screws. Savage started manufacturing some Axis receivers with larger #8 screws. Not all aftermarket manufacturers have changed their scope mount designs, but we have! Our picatinny scope mounts for the Savage Axis all come drilled out for the larger screws. We provide both the #8 and #6 screws as well, so no matter which model Axis you have, our base is guaranteed to fit!
This mount is ambidextrous.
We recommend measuring the hole spacing in your receiver to confirm it matches with the dimensions we have published.
Picatinny cross slots run the full length of the rail, which gives the shooter flexibility when mounting scope rings and other accessories. The channel in the center reduces the overall mass of the mount. Also, in many cases, it will not obstruct usage of factory iron sights. Our one-piece scope mounts are the obvious choice for hunters and tactical shooters alike.
We machine these in our shop using one of our machining centers. After machining, the mounts are tumbled, sand blasted, and Type II anodized for long lasting durability.
Installation: We recommend 20 inch lbs of torque and a drip of blue loctite (loctite is available through our website and is sold separately).
| MANUFACTURER | EGW |
